Simple Collocated Cokriging

Simple collocated cokriging uses secondary data at the estimation location to improve the primary variable estimate.

This example demonstrates the correlogram-based API using MarkovModel1, which encapsulates the Markov Model I (MM1) cross-covariance structure.

Example

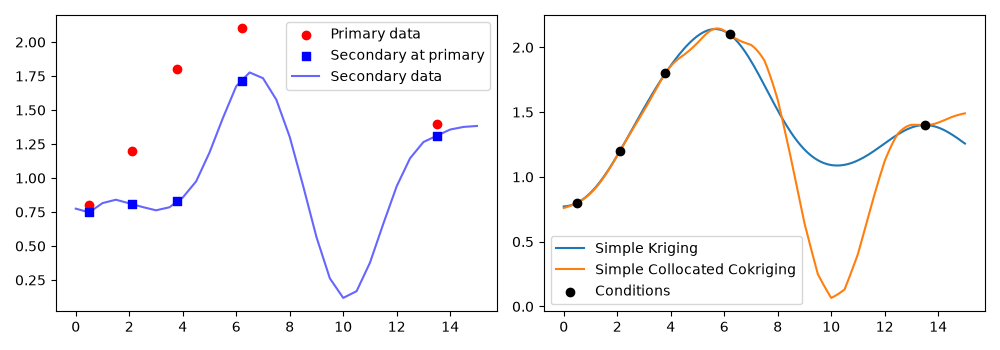

Here we compare Simple Kriging with Simple Collocated Cokriging using the MarkovModel1 correlogram.

import matplotlib.pyplot as plt
import numpy as np

from gstools import Gaussian, MarkovModel1, krige
from gstools.cokriging import SimpleCollocated

# condtions
np.random.seed(4)
cond_pos = np.array([0.5, 2.1, 3.8, 6.2, 13.5])
cond_val = np.array([0.8, 1.2, 1.8, 2.1, 1.4])
gridx = np.linspace(0.0, 15.0, 151)
model = Gaussian(dim=1, var=0.5, len_scale=2.0)

Generate correlated secondary data

sec_pos = np.linspace(0, 15, 31)
primary_trend = np.interp(sec_pos, cond_pos, cond_val)
gap_feature = -1.6 * np.exp(-(((sec_pos - 10.0) / 2.0) ** 2))
gap_feature2 = -0.95 * np.exp(-(((sec_pos - 4.0) / 2.0) ** 2))
sec_val = 0.99 * primary_trend + gap_feature + gap_feature2

sec_grid = np.interp(gridx, sec_pos, sec_val)
sec_at_primary = np.interp(cond_pos, sec_pos, sec_val)

Simple Kriging and Simple Collocated Cokriging

sk = krige.Simple(model, cond_pos=cond_pos, cond_val=cond_val, mean=1.0)
sk_field, sk_var = sk(gridx, return_var=True)

# Compute cross-correlation from data
cross_corr = np.corrcoef(cond_val, sec_at_primary)[0, 1]

# Create MarkovModel1 correlogram
correlogram = MarkovModel1(
    primary_model=model,
    cross_corr=cross_corr,
    secondary_var=np.var(sec_val),
    primary_mean=1.0,
    secondary_mean=np.mean(sec_val),
)

# Simple Collocated Cokriging
scck = SimpleCollocated(correlogram, cond_pos=cond_pos, cond_val=cond_val)
scck_field, scck_var = scck(gridx, secondary_data=sec_grid, return_var=True)

fig, ax = plt.subplots(1, 2, figsize=(10, 3.5))

ax[0].scatter(cond_pos, cond_val, color="red", label="Primary data")
ax[0].scatter(
    cond_pos,
    sec_at_primary,
    color="blue",
    marker="s",
    label="Secondary at primary",
)
ax[0].plot(sec_pos, sec_val, "b-", alpha=0.6, label="Secondary data")
ax[0].legend()

ax[1].plot(gridx, sk_field, label="Simple Kriging")
ax[1].plot(gridx, scck_field, label="Simple Collocated Cokriging")
ax[1].scatter(cond_pos, cond_val, color="k", zorder=10, label="Conditions")
ax[1].legend()

plt.tight_layout()
plt.show()
